Blood Bank Solutions
Blood Collection Monitoring with Controlled Mixing and Volume Management
Mitra m.BCM is a microcontroller based blood collection monitor system that collects, monitors, and mixes blood with anticoagulant in the blood bag. Light weight, compact, and easy to operate, it supports accurate monitoring and controlled collection volume.
Mitra m.BCM mini BS is a blood collection monitor designed for blood bank use. It is light weight, compact, and easy to operate.
The system supports collection monitoring, blood bag mixing, volume control, clamping, recall, data transfer, and record keeping.
Key Features
- 01
User Friendly Menu
A user friendly menu supports easy and quick operation.
- 02
Light and Compact
Light weight and compact design, with an optional carry case for easy transportation.
- 03
Removable Tray
Easily removable magnetic coupled tray for cleaning.
- 04
HMI Touch Display
HMI touch display with donor information and clear visibility of status and prompt messages.
- 05
Bag Taring
Taring of bag volume before collection for accurate results.
- 06
Automatic Recall
Automatic recall of the last donation.
- 07
Continuous Mixing
Continuous tray movement during collection or pause at 12 to 18 RPM.
- 08
Automatic Clamping
Automatic stop of blood collection by clamping the tubing at the end of the selected volume, and automatic release of clamp when the bag is lifted.
- 09
Universal Bag Support
Suitable for all types of bags.
Additional Benefits
- 01
Dual Unit Display
Collection volume display in ml and gms.
- 02
Pause Handling
Automatic clamp close during pause with continuous tray movement, plus facility to change pre set volume in pause mode.
- 03
Single Touch Selection
Single touch volume selection for standard collection of 100 ml, 350 ml, and 450 ml.
- 04
Emergency Stop
Emergency stop facility for operator control.
- 05
Record Keeping
Data transfer and record keeping facility.
- 06
Status Indicators
Real time clock facility, battery voltage icon display, and LED indication for process identification.
Use Context: Designed for blood collection workflows where accurate monitoring, mixing, and controlled collection volume are required.
Related product: the m.BCM Blood Collection Monitor is also available through Mitra's dedicated Blood Collection Monitors range.
Specifications
- Model
- m.BCM mini BS
- Control System
- Microcontroller based
- Display
- HMI touch display with donor information
- Mixing Tray
- Magnetic coupled, removable
- Tray Speed
- 12 to 18 RPM
- Single Touch Volumes
- 100 ml, 350 ml, 450 ml
- Volume Display
- ml and gms
- Clamping
- Automatic stop and release
- Data
- Data transfer and record keeping
Specifications to be validated against approved product brochures.
Product Views

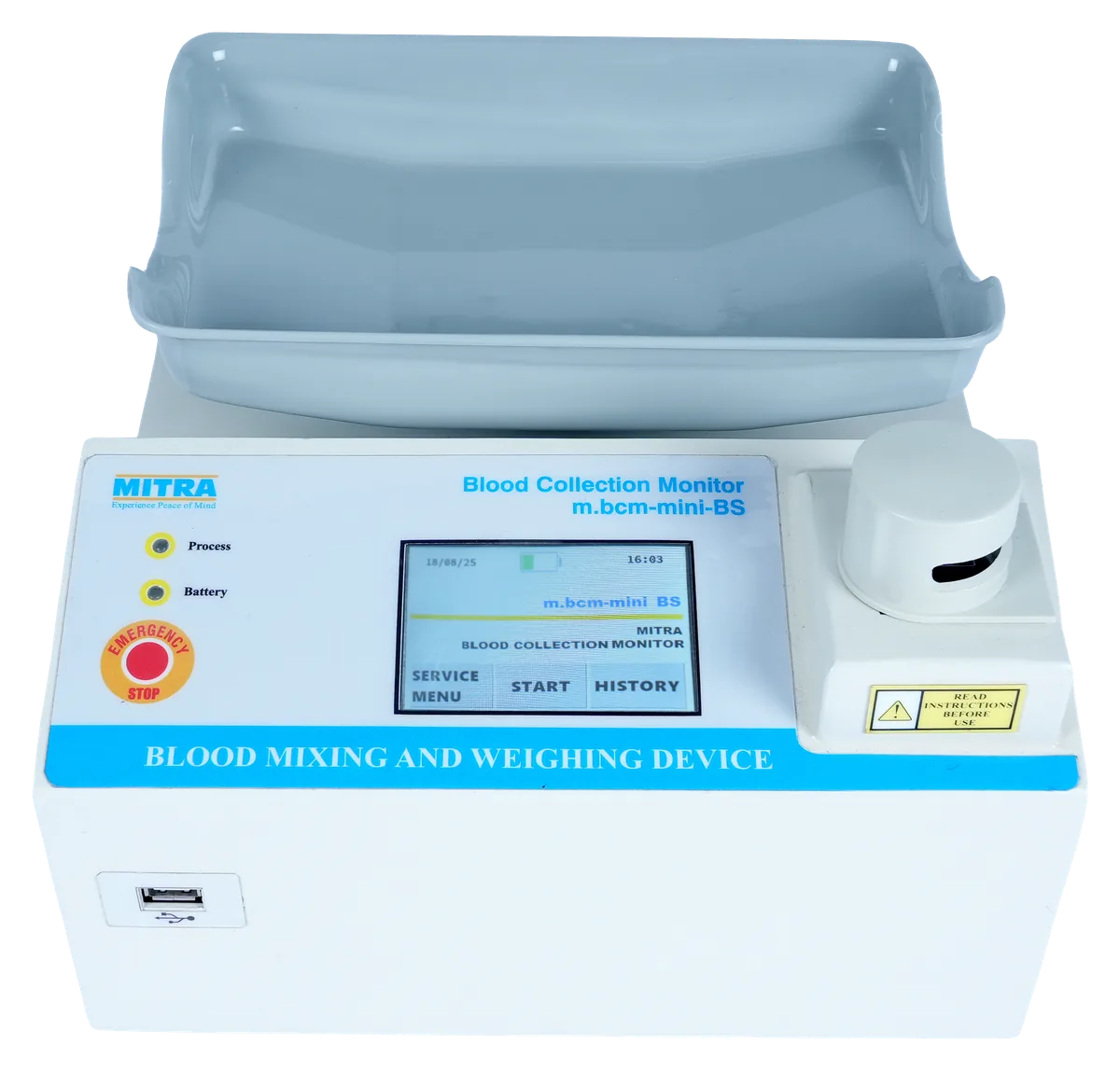

Front View

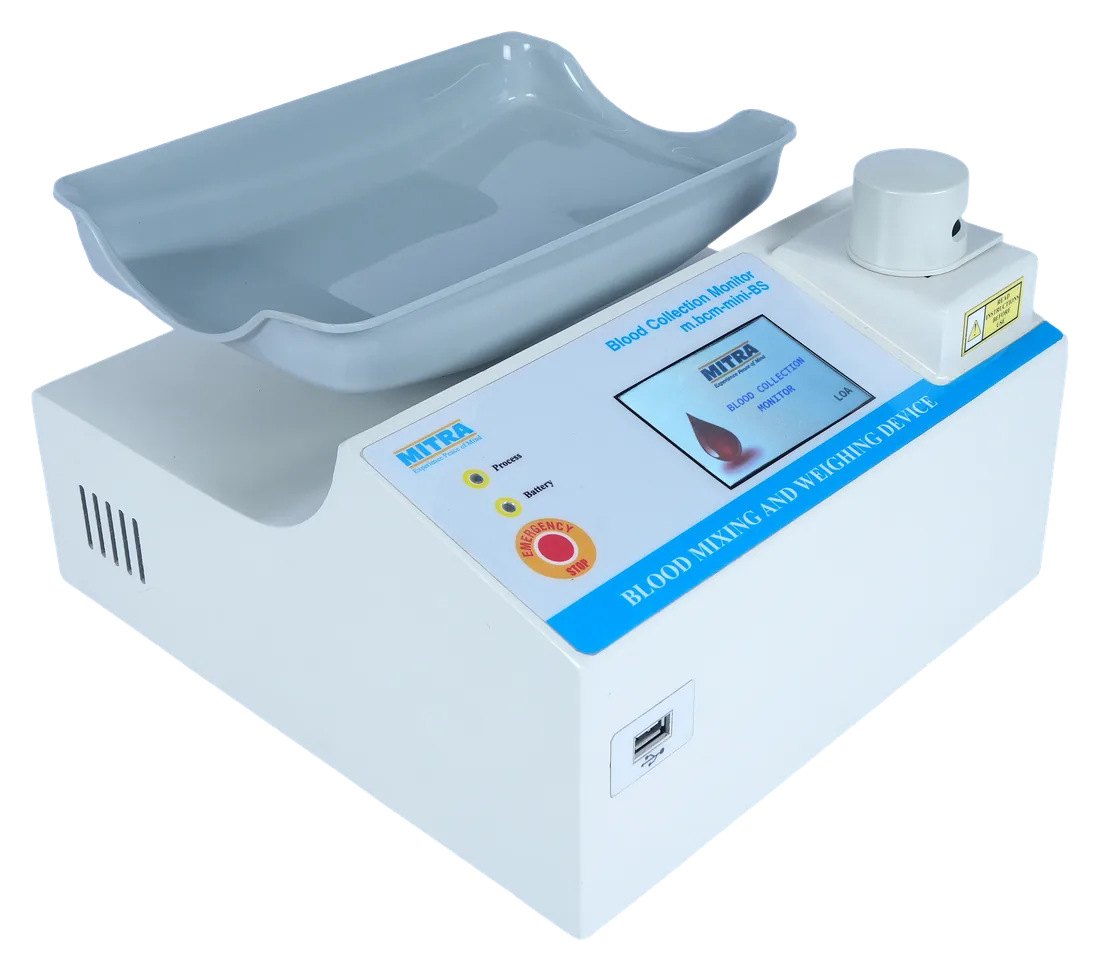

Left View
Request Details for m.BCM
Connect with Mitra to know more about specifications, catalogue, pricing, and availability.
