Automated Blood Component Extraction for Blood Bank Workflows
Mitra m.Compo is designed for automatic blood component extraction from TAT and TAB blood bag systems of 350 ml and 450 ml, supporting component separation with sensor based level control, a motor driven press mechanism, and automatic programs.
Mitra Automated Blood Components Extractor, m.Compo, supports automatic blood components extraction from Top and Top and Top and Bottom blood bag systems of 350 ml and 450 ml.
The system is designed to support component separation workflows with sensor based level control, motor driven press mechanism, touchscreen display, and automatic programs for separation.
Key Features
- 01
Microcontroller Based Control
A microcontroller based controlling system manages the extraction process.
- 02
TAT and TAB Compatibility
Automated blood component extraction from TAT and TAB bag sizes of 350 ml and 450 ml.
- 03
Efficient Sensor System
Precise level control for maximum recovery of required quality blood components.
- 04
Motor Driven Press
Motor driven press mechanism with pressure control for a smooth start of the separation process.
- 05
Layer Stability
Component layer stability is maintained during separation.
- 06
Touchscreen Display
Touchscreen display for process monitoring and control, with elaborate instruction display for ease of operation.
- 07
Automatic Programs
Auto programs for RBC and PPP separation, platelet concentrate separation, and PRP separation.
- 08
Automatic Air Removal
Automatic air removal from the plasma bag.
- 09
Integrated Tube Sealing
Two tube clamps with inbuilt RF tube sealer, plus a hanger pin for the primary bag.
- 10
Ergonomic Build
Ergonomic and sturdy design for daily blood bank use.
Use Context: Designed for blood bank environments that need automated support for component extraction and separation workflows.
Specifications
- Model
- m.Compo
- Control System
- Microcontroller based
- Compatible Bag Systems
- TAT (Top and Top) and TAB (Top and Bottom)
- Bag Sizes
- 350 ml and 450 ml
- Level Control
- Sensor based
- Press Mechanism
- Motor driven with pressure control
- Display
- Touchscreen
- Separation Programs
- RBC and PPP, platelet concentrate, PRP
- Tube Sealing
- Two tube clamps with inbuilt RF tube sealer
Specifications to be validated against approved product brochures.
Product Views

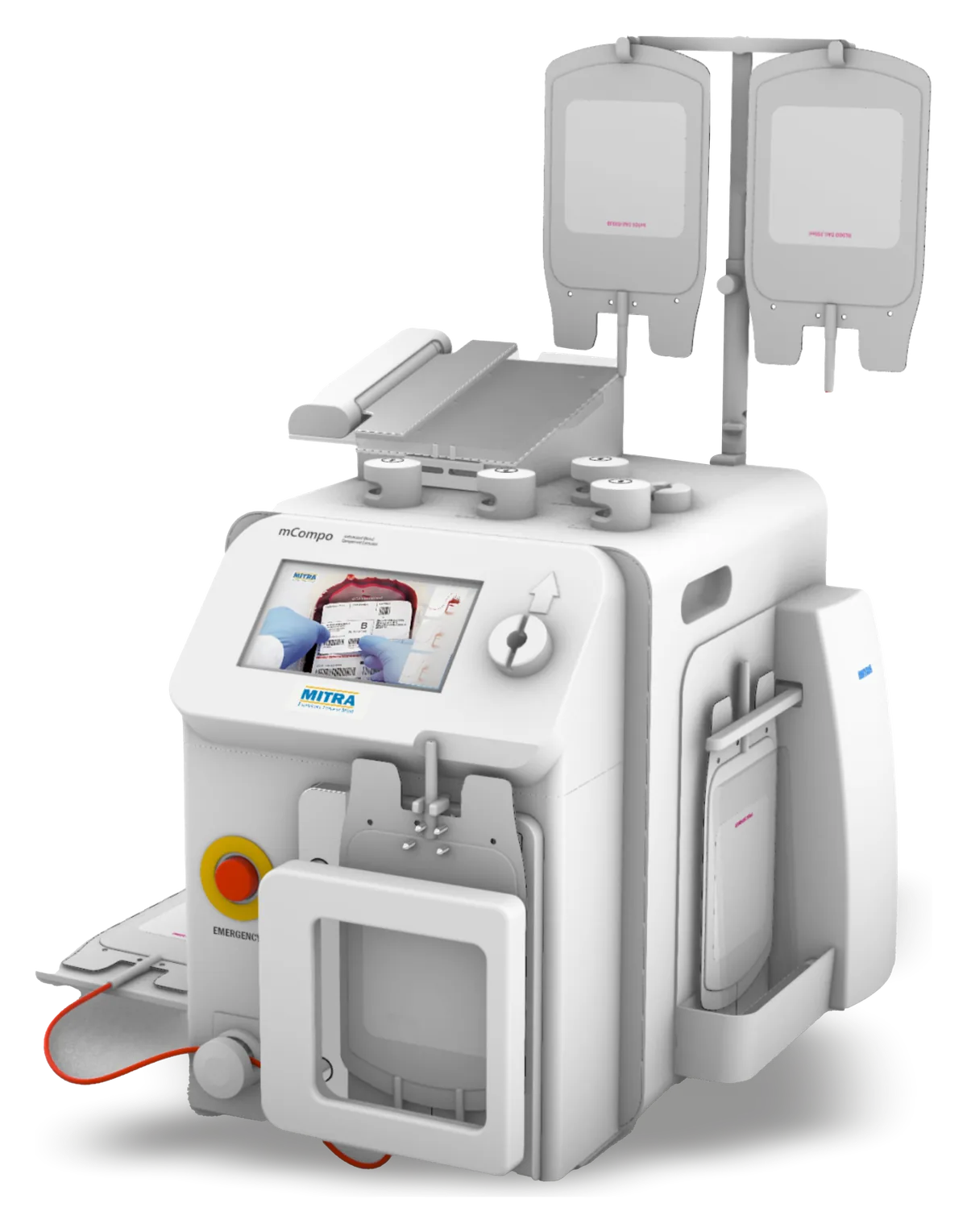

Front View

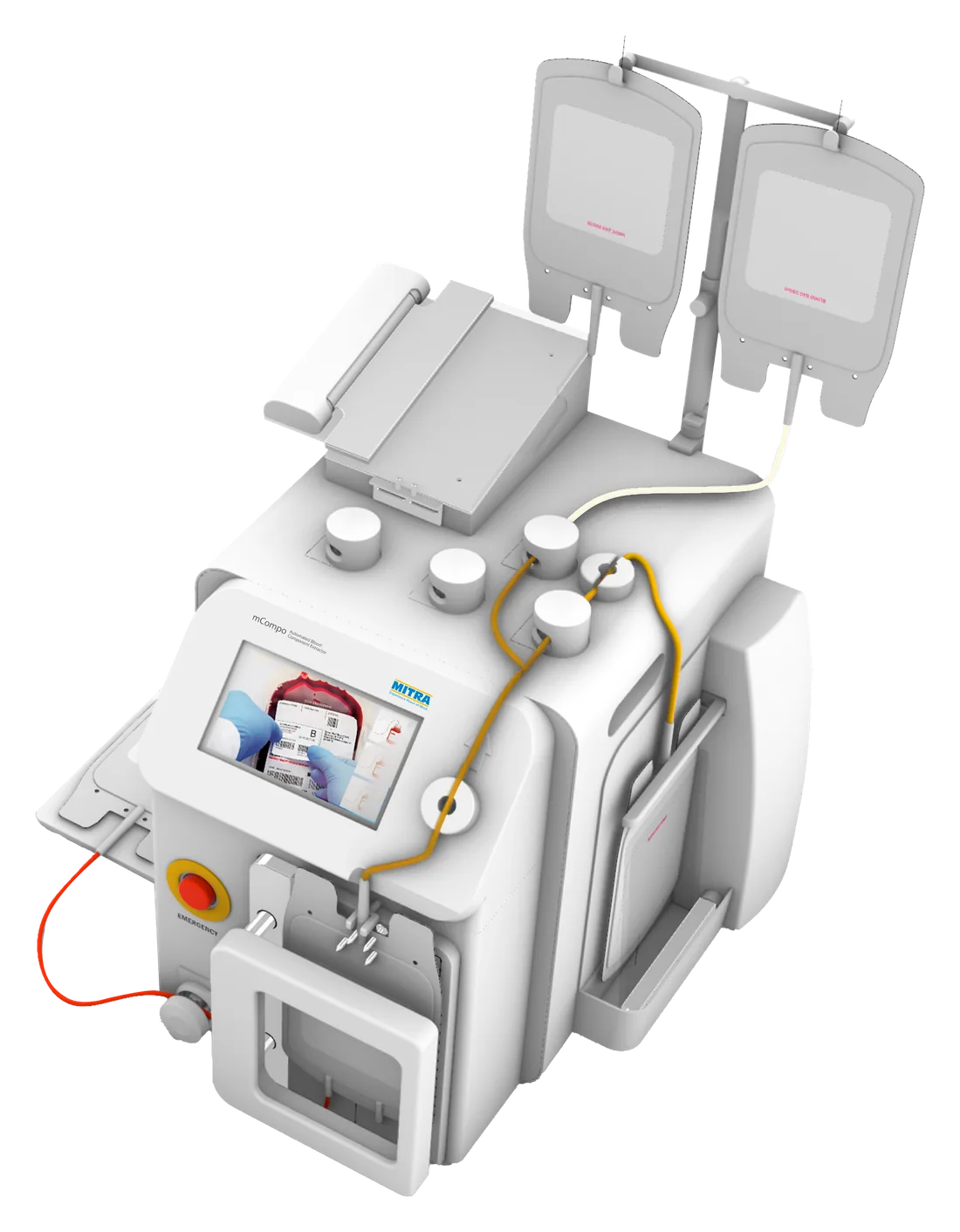

Top View
